Nets and Straps

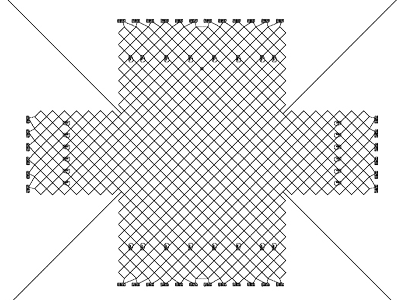

TFI manufactures its nets using the highest grade polyester in a knotless design that ensures the tightest fit for your precious cargo. All nets are manufactured with a built-in overdesign factor to take into account the natural deterioration of materials over time. Our NME nets can fit both PAG and PMC pallets. Height can be customized according to need.

Dimensions: 2,235 / 2,438 x 3,175 x up to 2,997

Max Gross Weight: 6,804 kg

Webbing: 100 % polyester

Mesh Type: Knotless

Fittings: 18 double stud fittings

Hooks: 18

Standard lashing line: 5,000 mm

Weight: from 15 kg

Airline logo placards, Do Not Cut Tag, colored webbing, colored lashing lines, customized lashing line length, ODLN Tag.

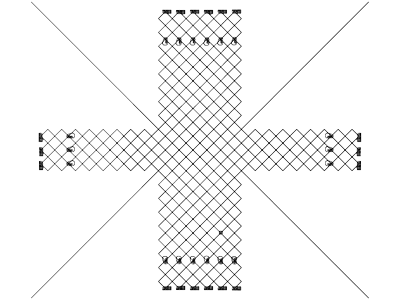

TFI NLA nets are designed for the PLA and FLA pallet. Common heights include 64”, 80” and 88”.  Our fittings are strictly manufactured according to ISO and SAE specifications and 100% inspection ensures that each fitting exactly meets our stringent requirements.

Dimensions: 1,534 x 3,175 x up to 2,235

Max Gross Weight: 6,804 kg

Webbing: 100 % polyester

Mesh Type: Knotless

Fittings: 18 double stud fittings

Hooks: 18

Weight: from 15 kg

Airline logo placards, Do Not Cut Tag, colored webbing, colored lashing lines, customized lashing line length, ODLN Tag.

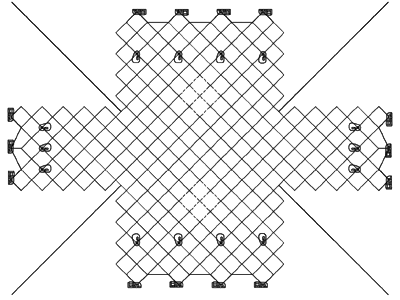

This net is designed for the PEB pallet. Some commonly required heights are 96 inches and 118 inches. All our nets are equipped with coated carbon steel hooks and optional warning “do not cut” tags on the sides that are permanently fixed to pallets.

Dimensions: 2,235 x 1,346 x up to 2,997

Max Gross Weight: 1,136 kg

Webbing: 100 % polyester

Mesh Type: Knotless

Fittings: 18 double stud fittings

Hooks: 18

Weight: from 10.8 kg

Airline logo placards, Do Not Cut Tag, colored webbing, colored lashing lines,   customized lashing line length, ODLN Tag.

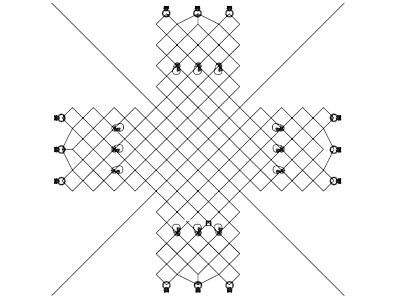

The NKC net is designed for the PKC pallet and comes in various heights up to 2,032 mm.  Among the above pictures is the Operational Damage Limits Notice (ODLN) that TFI affixes to its nets. This notice can be used by operators for a quick check to assess whether a net is in airworthy condition as per IATA recommendations.

Dimensions: 1,534 x 1,562 x up to 2,032

Max Gross Weight: 1,588 kg

Webbing: 100 % polyester

Mesh Type: Knotless

Fittings: 12 single stud or double stud fittings

Hooks: 12

Weight: from 4 kg

Airline logo placards, Do Not Cut Tag, colored webbing, colored lashing lines,   customized lashing line length, ODLN Tag.

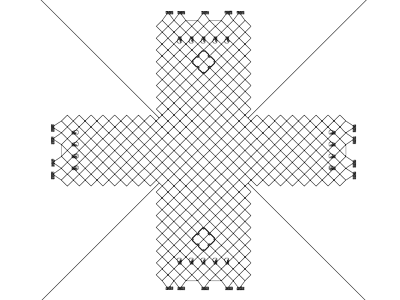

Used on heavy duty 16 foot pallets, TFI NRA nets generally come in two heights: 2,438 mm or 2,997 mm. Two handling placards are provided with every TFI net as a standard and can be designed according to customer need. They often feature customer’s logo and/or net specifications for quick and easy identification.

Dimensions: 2,438 x 4,978 x up to 2,997 mm

Max Gross Weight: 11,340 kg

Webbing: 100 % polyester

Mesh Type: Knotless

Fittings: 36 double stud fittings

Hooks: 28

Weight: from 21.7 kg

Airline logo placards, Do Not Cut Tag, colored webbing, colored lashing lines, customized lashing line length, ODLN Tag.

The largest of our range of nets, the NGE is used on PGA / PGF pallets. The two most common heights are: 2,438 mm and 2,997 mm. Our nets’ webbing and lashing lines can also be colored according to clients’ specifications.

Dimensions: 2,438 x 6,057.9 mm x up to 2,997 mm

Max Gross Weight: 13,608 kg

Webbing: 100 % polyester

Mesh Type: Knotless

Fittings: 40 double stud fittings

Hooks: 30

Weight: from 24.5 kg

Airline logo placards, Do Not Cut Tag, colored webbing, colored lashing lines, customized lashing line length, ODLN Tag.

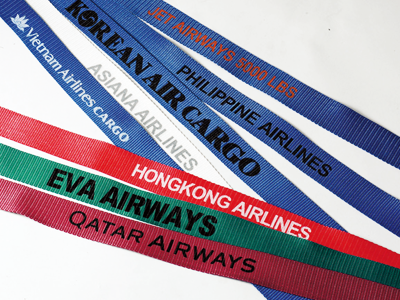

Our straps are TSO-172 certified and FAA approved with a built in 1.30 overdesign factor, exceeding IATA recommendations. TFI is one of only a handful of companies that hold TSO certification for these vital cargo accessories. Patented over-centre buckle is designed to prevent any slippage no matter how rough the transportation conditions. Our up to 5,000 webbing denier far outstrips what is generally found on the tie-down strap market today.

Width: 45 mm

Length: as required, most commonly seen is 9 meters.

Webbing Material: 100% polyester

Fittings: double stud fittings on both ends

Buckle:  Over center (non-slip type)

Ultimate load: 5,000 lbs

Narrow webbing (25 mm), colored webbing, carrier logo on webbing, additional hooks, ratchet-type buckle.

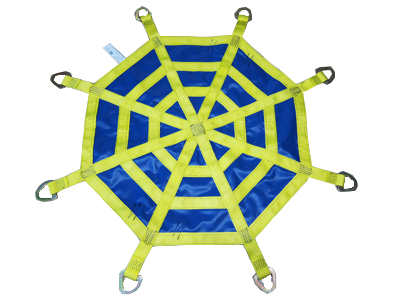

Cargo Restraint Stoppers or “Spider Nets” are non-certified cargo accessories used for constraining overly long and narrow cargo items. TFI uses fully qualified and certified materials in the production of these accessories from the webbing to the canvas to the metal fittings. Restraint webbing is designed to meet ISO 16049-1 as per IATA recommendations and we use the same canvas as on our container doors which undergo rigorous NAS 3610 testing. As expected, all materials have passed FAR flammability tests.

Webbing width: 45 mm

Webbing Length: 1,200 mm

Ultimate Load: 5,000 lbs

Colored webbing, canvas in blue or red, customized markings on the canvas.
